Senville 9K BTU Mini Split with 22.6 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-09HF-IC)

$170.75
$1749.99
Quantity
ADD TO CART
BUY IT NOW
  • Detail

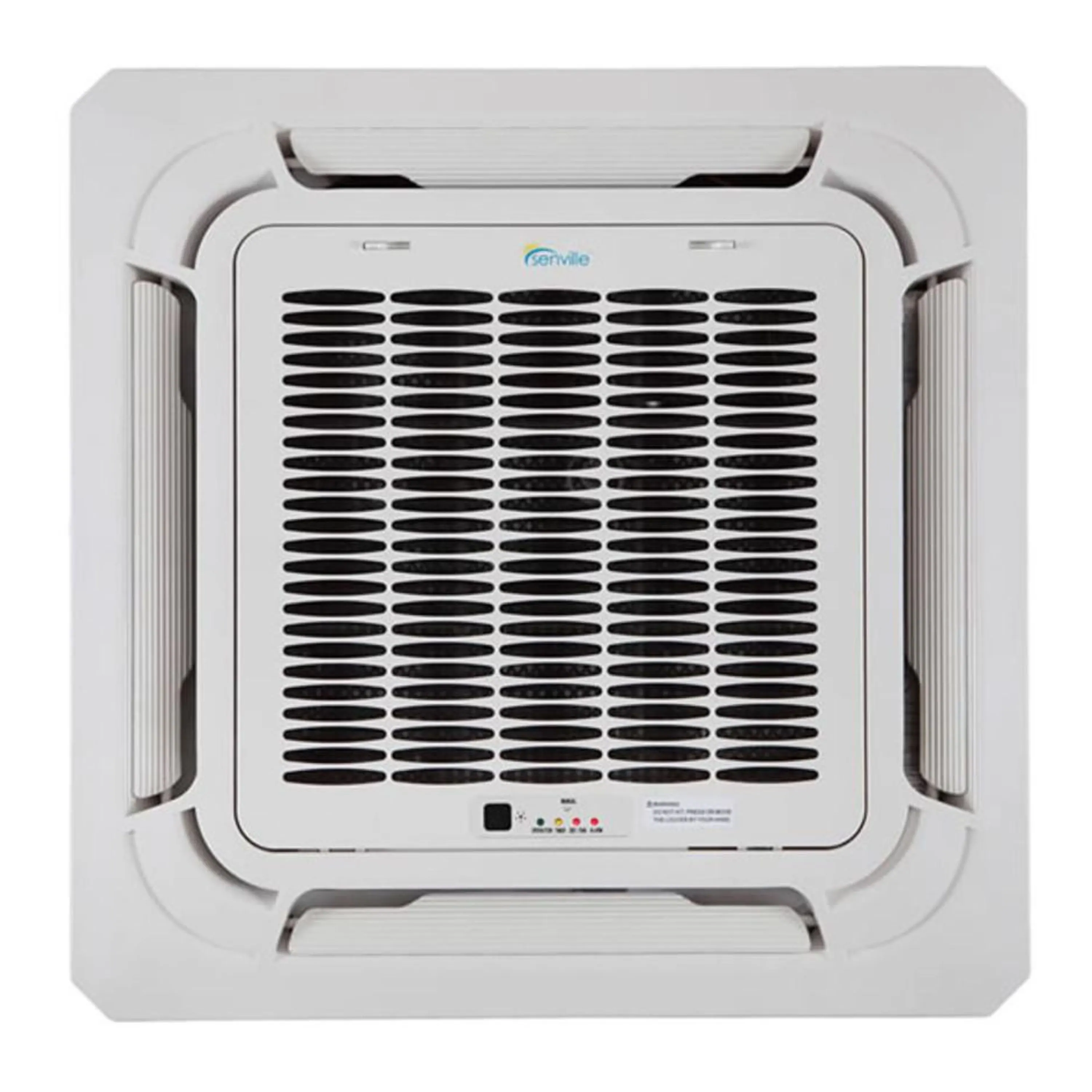

    Senville SENA-09HF/IC is a high-efficiency 9000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

    Features

    • 22.6 SEER2 ENERGY STAR -聽Save up to 40% on energy costs annually.
    • Heating down to -30掳C (-22掳F) -聽Reliable performance in extreme cold.
    • Ultra-Quiet Operation -聽Whisper-quiet for bedrooms & offices.
    • Professional Installation -聽Required to maintain warranty coverage.
    • Smart Home Integration -聽Control your Senville system remotely via app. Create schedules, adjust settings, and enjoy convenience and energy savings remotely.
    • ENERGY STAR Certified -聽Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system鈥攊deal for eco-conscious homes and businesses.
    • Cold Climate Heat Pump -聽Provides heating at -30掳C (-22掳F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
    • Diagnostics & Leak Detection -聽Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
    • 10-Year Warranty -聽Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
    • Installation Kit + Accessories Included -聽Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

    What's Included?聽

    • Indoor Unit (Ceiling Cassette)
    • Outdoor Unit
    • Wireless Remote Control
    • 16 ft. Installation Kit
    • Indoor-Outdoor Wiring Harness
    • Installation Manual
    • User鈥檚 Manual
    • 10-Year Manufacturer Warranty
    Condenser聽
    Dimensions (WxDxH) (in.)31.69 x 12.99 x 21.81
    Weight72.75 Lbs
    Air Flow (Max) CFM1471.5
    Noise Level dB55
    Minimum Outdoor Heating Temperature-22掳F / -30掳C
    Air Handler
    Dimensions (WxDxH) (in.)22.44 x 22.44 x 9.65
    Weight35.27 Lbs.
    Air Flow (Turbo/H/M/L) CFM353.2 / 312.0 / 264.9 / 182.5
    Noise Level (Turbo/H/M/L) dB42.5 / 40.0 / 37.5 / 26.0
    Technical Specifications
    StyleCeiling Cassette Mini Split AC With Heat Pump
    Power Supply (V-Ph-Hz)208/230V, 1Ph, 60Hz
    Voltage Range187-253
    SEER222.6
    EER214
    Cooling Capacity (BTU)9000
    Cooling Range (BTU)3700~13600
    Cooling Input Range (W)200~1150
    Cooling Current Range (A)1.6~5.1
    Heating Capacity (BTU)10000
    Heating Range (BTU)5100~15700
    Heating Input Range (W)285~1330
    Heating Current Range (A)1.5~5.9
    HSPF2-412.1
    HSPF2-59.3
    COP W/W4
    Minimum Circuit Ampacity (A)15
    Max. Fuse (A)15
    Moisture Removal (L/H)0.88
    Refrigerant Type / Charge ozR454B
    Refrigerant Pre-charge25 Ft.
    Connection Wiring14*4 AWG
    Thermostat TypeRemote Control
    Warranty10 Years Compressor / 5 Years Parts
