Home / Senville 24K BTU Mini Split with 20.7 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-24HF-IC)
  • Senville 24K BTU Mini Split with 20.7 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-24HF-IC)
  • Senville 24K BTU Mini Split with 20.7 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-24HF-IC)
  • Senville 24K BTU Mini Split with 20.7 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-24HF-IC)

Senville 24K BTU Mini Split with 20.7 SEER2, 230V Ductless Air Conditioner and Heat Pump Condenser with Ceiling Cassette Air Handler (SENA-24HF-IC)

$183.82
$2399.99
Quantity
ADD TO CART
BUY IT NOW
  • Detail

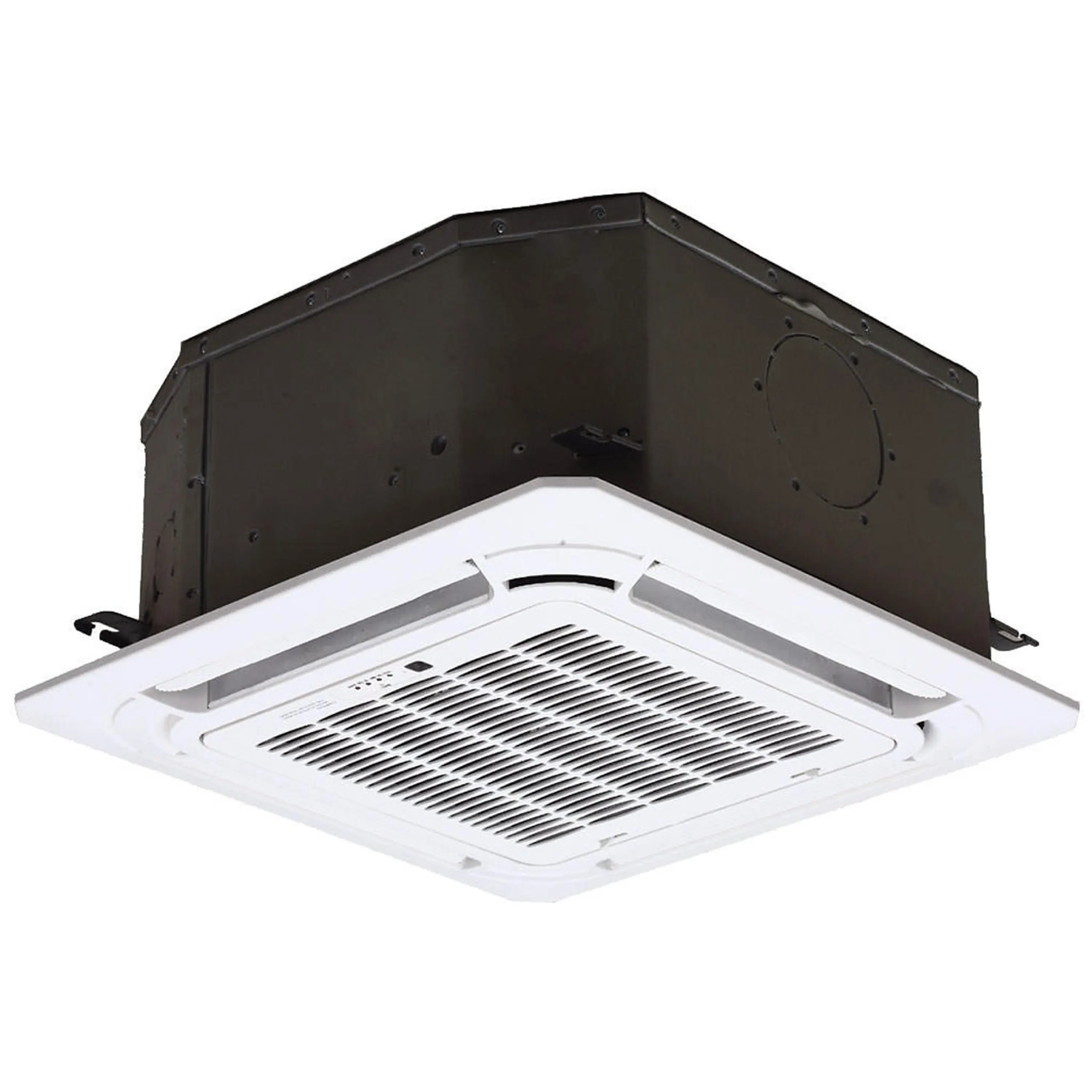

    Senville SENA-24HF/IC is a high-efficiency 24000 BTU ceiling cassette ductless mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

    Features

    • 20.7 SEER2 ENERGY STAR -聽Save up to 40% on energy costs annually. 聽 聽
    • Heating down to -30掳C (-22掳F) -聽Reliable performance in extreme cold.
    • Ultra-Quiet Operation -聽Whisper-quiet for bedrooms & offices. 聽 聽
    • Professional Installation -聽Required to maintain warranty coverage.
    • ENERGY STAR Certified -聽Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system鈥攊deal for eco-conscious homes and businesses.
    • Cold Climate Heat Pump -聽Provides heating at -30掳C (-22掳F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
    • Diagnostics & Leak Detection -聽Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
    • 10-Year Warranty -聽Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
    • Installation Kit + Accessories Included -聽Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

    What's Included

    • Indoor Unit (Ceiling Cassette)
    • Outdoor Unit
    • Wireless Remote Control
    • 16 ft. Installation Kit
    • Indoor-Outdoor Wiring Harness
    • Installation Manual
    • User鈥檚 Manual
    • 10-Year Manufacturer Warranty
    Condenser聽
    Dimensions (WxDxH) (in.)37.24 x 16.14 x 31.89
    Weight130.29 Lbs
    Air Flow (Max) CFM2236.7
    Noise Level dB61.5
    Air Handler
    Dimensions (WxDxH) (in.)32.68 x 32.68 x 8.07
    Weight47.18 Lbs.
    Air Flow (Turbo/H/M/L) CFM765.2 / 706.3 / 635.7 / 547.4
    Noise Level (Turbo/H/M/L) dB48.5 / 45.0 / 42.5 / 33.5
    Technical Specification
    StyleCeiling Cassette Mini Split AC With Heat Pump
    Power Supply (V-Ph-Hz)208/230V, 1Ph, 60Hz
    Voltage Range187-253
    SEER220.7
    EER212
    Cooling Capacity (BTU)23400
    Cooling Range (BTU)128000~26200
    Cooling Input Range (W)960~2300
    Cooling Current Range (A)4.3~10.1
    Heating Capacity (BTU)25000
    Heating Range (BTU)11500~30700
    Heating Input Range (W)695~2490
    Heating Current Range (A)3.8~10.9
    HSPF2-411.6
    HSPF2-59.2
    COP W/W3.54
    Minimum Circuit Ampacity (A)25
    Max. Fuse (A)25
    Moisture Removal (L/H)2.36
    Minimum Outdoor Heating Temperature-22掳F / -30掳C
    Refrigerant Type / Charge ozR454B / 63.49
    Refrigerant Pre-charge25 Ft.
    Connection Wiring14*4 AWG
    Thermostat TypeRemote Control
    Warranty10 Years Compressor / 5 Years Parts
    Senville Catalogue
