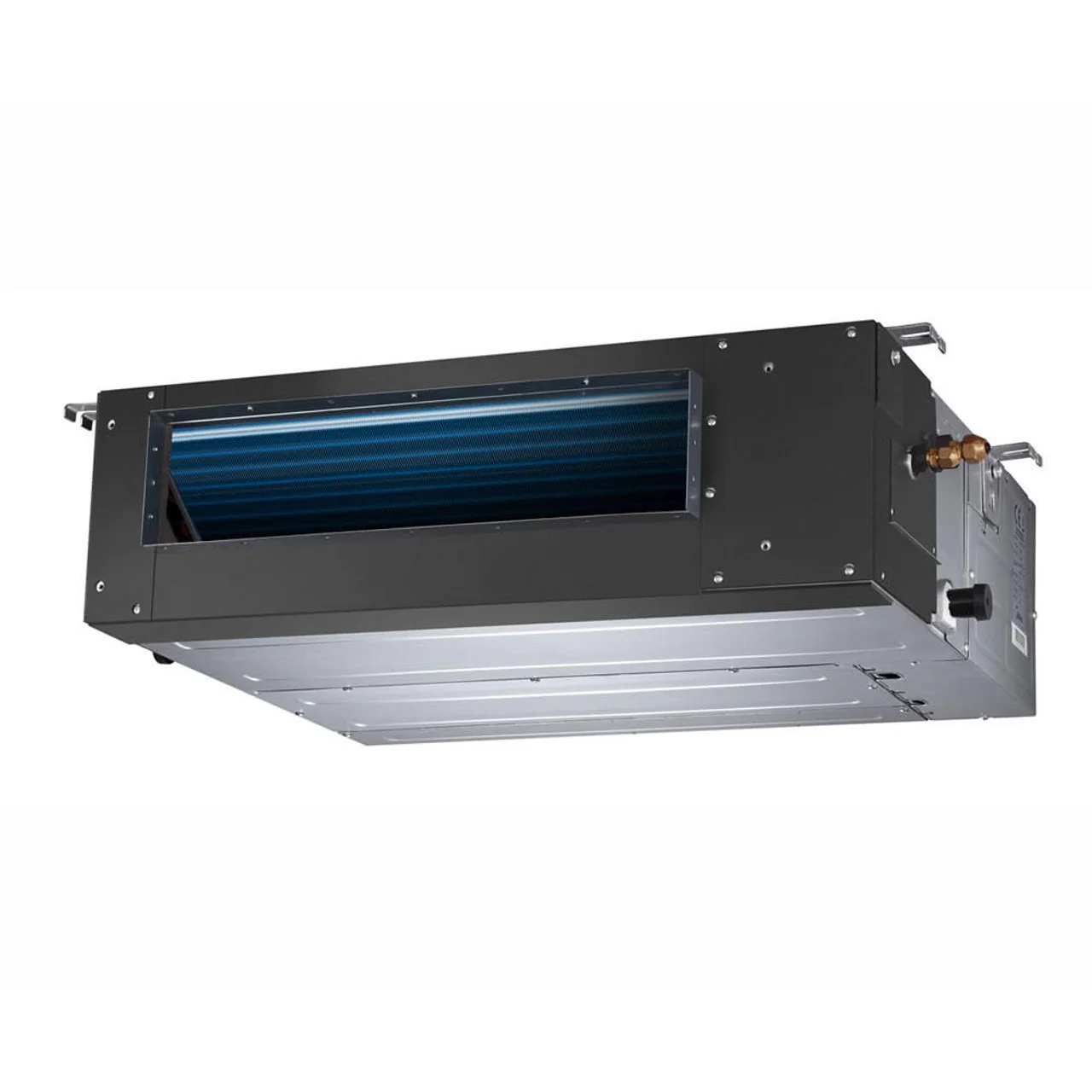

Senville 12K BTU Mini Split with 20 SEER2, 230V Concealed Duct Air Conditioner and Heat Pump Condenser (SENA-12HF-ID)

$194.21
$1999.99
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Senville SENA-12HF/ID is a high-efficiency 12000 BTU concealed duct mini split air conditioner and heat pump, ENERGY STAR certified and backed by a 10-year compressor warranty. It offers efficient, quiet, year-round climate control for your home or business.

    Features

    • 20 SEER2 ENERGY STAR -聽Save up to 40% on energy costs annually. 聽 聽
    • Heating down to -30掳C (-22掳F) -聽Reliable performance in extreme cold.
    • Ultra-Quiet Operation -聽Whisper-quiet for bedrooms & offices. 聽 聽
    • Professional Installation -聽Required to maintain warranty coverage
    • ENERGY STAR Certified -聽Save up to 40% annually on energy costs with this ultra-efficient, ENERGY STAR certified system鈥攊deal for eco-conscious homes and businesses.
    • Cold Climate Heat Pump -聽Provides heating at -30掳C (-22掳F) with up to 75% efficiency, ensuring year-round comfort even in extreme climates.
    • Diagnostics & Leak Detection -聽Built-in self-diagnostics and leak detection system help maintain peak efficiency and alert you of any issues for easier maintenance.
    • 10-Year Warranty -聽Comes with a 10-year compressor warranty and 5-year parts warranty, backed by North American support.
    • Installation Kit + Accessories Included -聽Includes a complimentary installation kit. System is pre-charged with R454B refrigerant for up to 25 ft. Professional installation is required to maintain warranty coverage and optimal performance.

    What's Included

    • Indoor Unit
    • Outdoor Unit
    • Wireless Remote Control
    • 16 ft. Installation Kit
    • Indoor-Outdoor Wiring Harness
    • Installation Manual
    • User鈥檚 Manual
    • 10-Year Manufacturer Warranty
    Condenser聽
    Dimensions (WxDxH) (in.)31.69 x 12.99 x 21.81
    Weight72.75 Lbs
    Air Flow (Max) CFM1470.6
    Noise Level dB56
    Air Handler
    Dimensions (WxDxH) (in.)27.56 x 19.92 x 7.87
    Weight39.46 Lbs.
    Air Flow (Turbo/H/M/L) CFM400.2 / 323.7 / 264.9 / 176.6
    Noise Level (H/M/L) dB36 / 34.5 / 32.5
    Technical Specification
    StyleConcealed Duct Mini Split AC With Heat Pump
    Power Supply (V-Ph-Hz)208/230V, 1Ph, 60Hz
    Voltage Range187-253
    SEER220
    EER212
    Cooling Capacity (BTU)12000
    Cooling Range (BTU)3400~13500
    Cooling Input Range (W)145~1200
    Cooling Current Range (A)1.3~5.5
    Heating Capacity (BTU)12500
    Heating Range (BTU)3800~16200
    Heating Input Range (W)260~1450
    Heating Current Range (A)1.9~6.5
    HSPF2-410
    HSPF2-58
    COP W/W3.39
    Minimum Circuit Ampacity (A)15
    Max. Fuse (A)15
    Moisture Removal (L/H)1.2
    Minimum Outdoor Heating Temperature-22掳F / -30掳C
    Refrigerant Type / Charge ozR454B / 35.27
    Refrigerant Pre-charge25 Ft.
    Connection Wiring14*4 AWG
    Thermostat TypeRemote Control
    AlexaEnabled
    Warranty10 Years Compressor / 5 Years Parts
